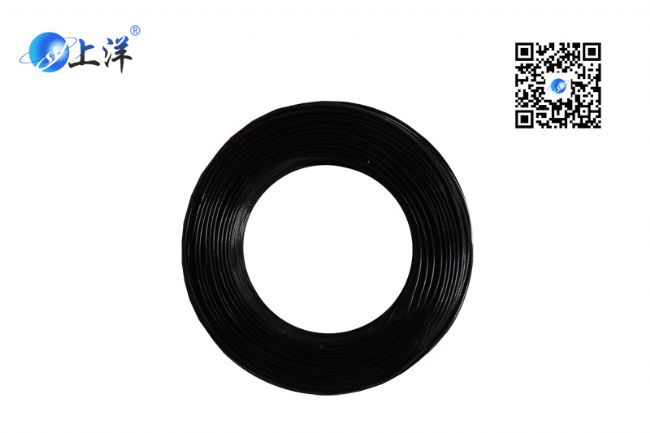

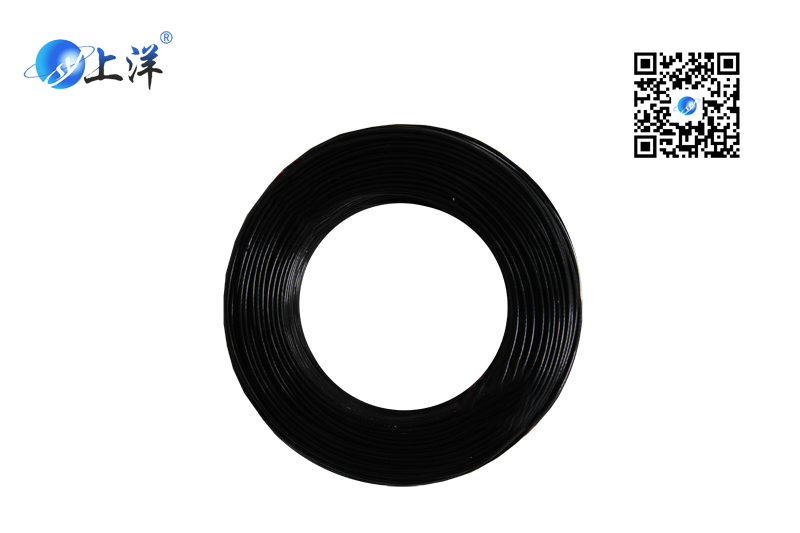

fslgwx UL1180.gif)
Product executive standard: ul758-2000
Rated voltage: 300V
Temperature range: - 65 ~ + 250 ℃
Conductor: solid core or stranded silver plated or nickel plated copper wire
Insulation: PTFE fluoroplastic
Color: red, yellow, blue, white, black, brown, green, transparent, etc.
Delivery length: short line sections not less than 10m are allowed, but the quantity shall not exceed 10% of the total delivery quantity.
Product performance: excellent corrosion resistance, oil resistance, strong acid, strong alkali, strong oxidant, etc; It has excellent electrical insulation performance, high voltage resistance, low high frequency loss, no moisture absorption, and large insulation resistance; It has excellent fire resistance, aging resistance and long service life.
Product application: in the electronic industry, it can be used for low temperature resistant wires, high temperature heating wires, aging resistant wires and flame retardant wires; In the household appliance industry, it can be used for the internal wiring of air conditioners, microwave ovens, electronic products, electric heaters, electric ovens, lamps and lanterns.
Wire specification
|
線規 （AWG） |
導體結構 根數/線徑 |
絕緣厚度 （mm） |
電線外徑 （mm） |
|
包裝長度 （m） |
|
10 |
37*0.43 |
0.33 |
3.67 |
3.546 |
305 |
|
12 |
19*0.49 |
0.33 |
3.11 |
5.64 |
305 |
|
14 |
19*0.37 |
0.33 |
2.51 |
8.96 |
305 |
|
16 |
19*0.30 |
0.33 |
2.16 |
14.6 |
305 |
|
17 |
19*0.26 |
0.33 |
1.96 |
18.3 |
305 |
|
18 |
19*0.23 |
0.33 |
1.81 |
23.2 |
305 |
|
20 |
19*0.19 |
0.33 |
1.61 |
36.7 |
305 |
|
1*0.80 |
0.33 |
1.46 |
35.2 |
305 | |
|
22 |
19*0.16 |
0.33 |
1.46 |
59.4 |
610 |
|
1*0.65 |
0.33 |
1.31 |
56.4 |
610 | |
|
24 |
7*0.20 |
0.33 |
1.26 |
94.2 |
610 |
|
1*0.05 |
0.33 |
1.16 |
89.3 |
610 | |
|
26 |
7*0.16 |
0.33 |
1.14 |
150 |
610 |
|
1*0.40 |
0.33 |
1.06 |
143 |
610 | |
|
28 |
7*0.12 |
0.33 |
1.02 |
239 |
610 |
|
1*0.32 |
0.33 |
0.98 |
227 |
610 | |
|
30 |
7*0.10 |
0.33 |
0.96 |
381 |
610 |
|
1*0.254 |
0.33 |
0.914 |
361 |
610 | |
|
32 |
7*0.08 |
0.33 |
0.90 |
664.8 |
610 |
|
1*0.20 |
0.33 |
0.86 |
588.3 |
610 | |
|
注：根據供需雙方協議，可以生產其他規格的產品。 | |||||
